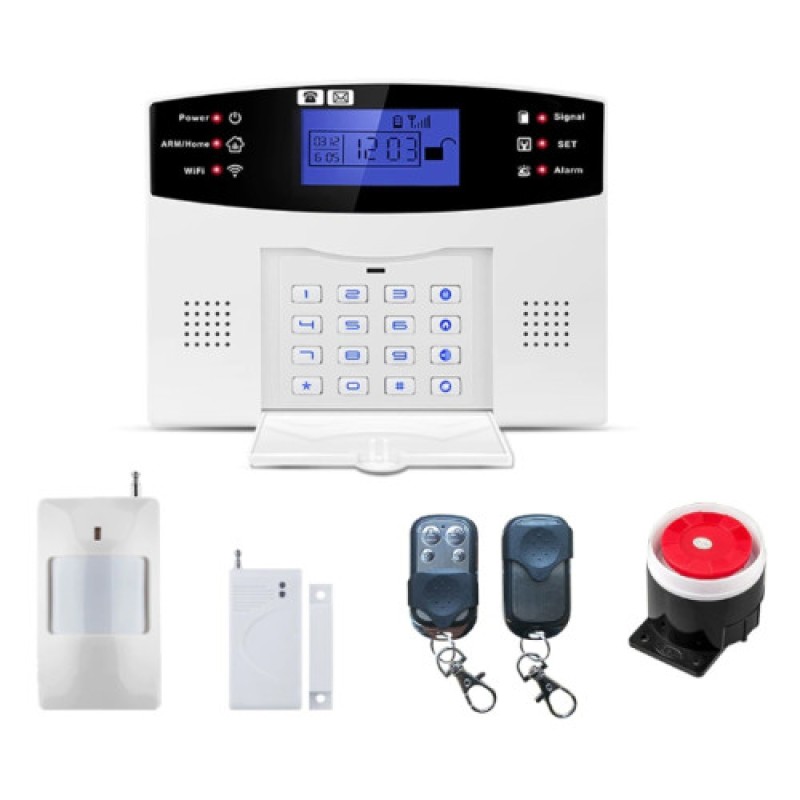

Security Protection Tuya WiFi + GSM Smart Home Alarm System

Protect your home, business, or rental property with 24/7 dual-network intelligence using the Tuya WiFi + GSM Smart Security Alarm System. Built with dual wireless transmission technology, this multi-zone alarm system communicates seamlessly over local 2.4GHz WiFi networks while utilizing a backup GSM SIM card slot to send automated phone calls and emergency SMS alerts directly to your smartphone if home broadband drops or power lines are cut.

Fully compatible with the globally recognized Tuya Smart and Smart Life app ecosystems, this DIY system allows instant real-time monitoring, arming, disarming, and accessory expansion without costly monthly security monitoring contracts or complex hardwired installations.

Key Features & Specifications

• Product Type: Dual-Network Wireless Smart Security Alarm System Hub & Accessory Kit.

• Dual-Network Protection (WiFi 2.4GHz + GSM Cellular):

  • Primary WiFi Connection: Sends instantaneous push notifications directly to the Tuya / Smart Life app via home broadband.

  • GSM Cellular Backup: Accepts a standard cellular SIM card to dial up to 5 preset emergency phone numbers and dispatch SMS alerts if home internet fails or is intentionally disconnected.

• Full Tuya Smart & Smart Life App Integration:

  • Arm, disarm, check event logs, and toggle sensor zones remotely from anywhere in the world.

  • Compatible with Amazon Alexa and Google Assistant for hands-free voice control arming (with PIN protection).

  • Seamless automation linking: trigger smart lights, sirens, or security cameras automatically when an alarm zone trips.

• High-Decibel Built-in & External Siren Support:

  • Integrated panel siren outputs up to 85–90 dB to deter intruders immediately upon breach.

  • Supports additional wired or wireless external strobe sirens (up to 110–120 dB) for whole-property perimeter alerts.

• Multi-Zone Wireless Sensor Expansion (433MHz):

  • Supports up to 100+ wireless accessories including PIR motion detectors, door/window magnetic contact sensors, smoke detectors, water leak sensors, and remote key fobs.

  • Configurable zone attributes: Perimeter Zone, Interior Zone, 24-Hour SOS Panic Zone, and Delay Entry/Exit Zones.

• Built-in Rechargeable Backup Battery:

  • Integrated lithium backup battery provides up to 6–8 hours of continuous operation during mains power cuts or electrical outages.

  • Generates an instant mobile notification if external AC power is disconnected or restored.

• Interactive Control Panel & RFID Disarming:

  • Intuitive touchscreen or keypad interface with clear status indicators (Armed, Home/Stay Mode, Disarmed).

  • Includes RFID tap-to-disarm tags—perfect for children, elderly family members, or staff without smartphones.

Broad Universal Placement & Target Environments

• Residential Homes & Apartments: Guard entry doors, sliding ranch sliders, ground-floor windows, and open-plan hallways without running messy wiring across walls.

• Small Businesses & Retail Shops: Protect inventory rooms, reception areas, and back offices with scheduled auto-arming after business hours.

• Rental Properties & Airbnbs: Completely wireless, surface-mounted design installs in minutes with non-damaging adhesive tape or light screws, making it 100% portable for moving.

• Storage Units, Sheds & Garages: Keep tools, vehicles, and equipment secure using GSM cellular alerts in detached outbuildings beyond normal WiFi range.

• Elderly Care & Emergency Safety: SOS panic button pendants or panel hotkeys dispatch immediate emergency alert calls to designated family members.

Quick 4-Step Setup & Configuration Guide

1. Power & Connect Panel: Plug the main alarm host into AC power via the included adapter, turn on the battery backup switch, and insert an active GSM SIM card (optional for cellular backup).

2. Pair with Tuya App: Open the Tuya Smart or Smart Life app on your phone, set the alarm panel into WiFi pairing mode, and connect it to your 2.4GHz WiFi network.

3. Mount Wireless Sensors: Peel and stick the magnetic door/window sensors along primary access frames, and install the PIR motion detector in high-traffic hallways at roughly 2–2.2 meters height.

4. Test & Arm: Trigger a door opening to confirm the siren sounds and your smartphone receives an immediate notification; use the app, RFID fobs, or physical remote controls to switch between "Away", "Home", and "Disarm" modes.

0

PIR motion sensor detector:

Input voltage: ：9V（250mAH）
Satic current：≤40uA
Alarm current ：≤15mA
The detecting scope ：≤8M /110°
Alarm indication：Red LED
Wireless frequency：315MHz/433MHz（±75KHz）
Transmit distance ：≤80m（in the open space）
Working temperature：-10℃〜+50℃
Humidity：≤85％
